FlyPyBird

12/09/26

The premise: take a real fruit-fly connectome — an actual, measured wiring diagram of a fly’s nervous system — and wire it into a game of Flappy Bird. Game on the left, the fly’s brain lighting up on the right. Can biology dodge the pipes?

▶ Play it live — watch the real connectome fly (or press b to take the wings yourself).

This is a learning project, so I’m writing down what I get wrong as much as what I get right. Day one already corrected a big misconception of mine.

Misconception #1: a connectome is not a trainable model

I came in picturing this like the old RL-plays-Mario videos: a neural network you train with rewards until it gets good, dopamine for surviving, punishment for crashing. But a connectome isn’t a network you train — it’s frozen anatomy. It tells you “neuron A connects to neuron B, this many synapses, excitatory or inhibitory,” and nothing else. It’s a wiring diagram, not a set of weights waiting for gradient descent.

The important consequence, which took a second to sink in: if I RL-train the weights “like Mario,” I’ve thrown the fly brain away. What’s left is a generic neural net that merely happens to be shaped like a fly. The entire point — that real fruit-fly wiring is flying my game — evaporates the moment I start tuning the synapses.

So the dopamine/reward idea isn’t dead, it’s just demoted. Real flies do learn via dopamine, at specific synapses in a structure called the mushroom body — but modelling that plasticity is the hard, final milestone, not the MVP.

The MVP is a fly that REACTS, not one that LEARNS

Here’s the reframe. I don’t need learning to get a fly through a pipe. Flies have dedicated collision-detector neurons — lobula cells called LC4 and LPLC2 — that fire when something looms (grows) in the visual field and drive an escape/steering response. So I don’t hand-wire “walls are scary.” I render the wall so it looms in the fly’s view, feed it into the real optic-lobe circuit, and the avoidance is the actual neurons firing.

MVP loop: wall looms in the fly’s view → real circuit fires → read a motor neuron → fly goes up or down. No learning anywhere. Get the reflex working end-to-end first.

A question I got stuck on: do we discover which neurons fire, or is it known?

If we put the looming wall in, do we then see which neurons fire for the wings — or is that already known for flies?

Both — and the overlap is the whole project:

So I’m not blindly probing — I’m reproducing a known circuit and then watching it play my game.

Which fly? The “male CNS” and why it’s the harder-but-better choice

The neurons that flap the wings live in the VNC (the fly’s “spinal cord”), not the brain — but vision happens in the brain’s optic lobes. So the loop eyes → wings has to cross from brain into VNC, and that crossing is done by descending neurons. I went with the complete male central nervous system connectome (Cell, 2026, ~166k neurons) because it’s a single connected graph covering optic lobes + brain + VNC — my exact loop exists end to end in one dataset. The male VNC on its own (MANC, ~23k neurons) is on neuPrint and downloadable, with the wing motoneurons already identified.

The catch: there’s no ready-made real-time simulator for it (unlike the FlyWire brain, which has an in-browser one). So I’ll build my own small leaky-integrate-and-fire sim over a subset — the vision→escape→flight pathway, a few thousand neurons, not all 166k. More work, but it’s the most educational part of the whole thing. Stack: Python — neuPrint client for the data, Brian2/NumPy for the simulation.

The roadmap (each milestone = a checkpoint here)

Next up: M1, the spike. Gifs to follow once there’s something moving.

A glossary, and a live toy neuron circuit you can poke at

Before the spike, it’s worth nailing down the vocabulary I’ve been throwing around — and, since this is a learning project, actually building one of the smallest possible pieces of it so it stops being an abstraction.

Connectome — a complete wiring diagram of a nervous system: every neuron, and every synapse connecting it to every other neuron, with a strength (synapse count) and a sign. Nothing about time or activity is in it — it’s a parts list and a netlist, like a circuit schematic with no power connected yet.

Neuron — the basic signalling cell. It receives input from other neurons at synapses, and if that input pushes its internal voltage high enough, it fires.

Spike / action potential — the brief, stereotyped electrical pulse a neuron fires once its voltage crosses a threshold. This is the unit of communication in the brain — neurons don’t send graded voltages to each other, they send spikes (or don’t).

Chemical synapse, excitatory vs. inhibitory — the connection between two neurons, and its sign. Excitatory synapses push the receiving neuron’s voltage up (more likely to spike); inhibitory synapses push it down (less likely). The connectome records which is which for every connection — this is not something we get to choose, it’s measured.

Descending neuron (DN) — a neuron whose cell body and dendrites sit in the brain, but whose axon runs down into the ventral nerve cord (VNC) — literally the wire carrying a “decision” made in the brain out to the motor circuits that act on it. It’s the bridge between seeing and doing. The Giant Fiber (DNp01) is the most famous example in flies — a single spike in it is enough to trigger the entire jump-and-flight escape sequence.

A “stereotyped” brain — the surprising fact that makes any of this possible: individual neurons in a fly are anatomically reproducible across different flies of the species. DNp01 isn’t “a Giant-Fiber-like neuron this particular fly happened to grow” — it’s the same identifiable cell, in the same place, doing the same job, in (almost) every fly. That’s precisely how neurons in the MANC dataset (imaged from one fly) can be matched by name to neurons in the male CNS dataset (imaged from a different fly) — you’re not matching serial numbers, you’re matching recognisable characters.

The looming detectors — the actual visual cells this project hinges on: LC4 and LPLC2, lobula neurons that respond selectively to something expanding in the visual field — i.e. an object on a collision course — and synapse directly onto the Giant Fiber.

A tiny leaky-integrate-and-fire circuit, running live

Here’s the smallest circuit that actually demonstrates the ingredients above: leak, integrate, fire, and signed synapses. Four neurons:

Watch what happens as you turn the stimulus up: at low strength, nothing downstream fires at all. Push past a threshold and N1’s fast excitation reaches N3 before N2’s slow inhibition has caught up — so N3 gets a real, sustained response instead of being cancelled out immediately. This “fast-excite / slow-inhibit” motif is a real, common one in real nervous systems for exactly this reason: it lets a circuit respond to changes rather than just sitting at some cancelled-out steady state — which is the whole game when the thing you actually care about is a wall that’s looming, not a wall that’s simply there.

To be clear about what this toy is not: it is not LC4/LPLC2/the Giant Fiber, the constants aren’t fit to any biological data, and it’s simulated with a plain fixed-step Euler integrator, not anything resembling Brian2. It exists purely so the words “leak,” “integrate,” “fire,” “excitatory,” and “inhibitory” have a picture attached to them before M1.

N3 (motor) firing rate — the "wing neuron" proxy: 0.0 Hz
Show the code

The block above is the entire demo — no libraries, just a canvas and this loop. The core of it is the LIF update:

// the LIF equation: leak back to rest, plus injected current, scaled by dt/tau
n.v += ((vRest - n.v) + n.Iinj) * (dt / n.tau);

if (n.v >= vThresh) {
  n.v = vSpike;        // fire
  n.spikedThisStep = true;
}
// ...next step: n.v = vReset

And synapses are just delayed voltage kicks, positive for excitatory, negative for inhibitory, queued and delivered after their conduction delay:

if (s.from.spikedThisStep) {
  pending.push({ time: simTime + s.delay, synapse: s });
}
// later, once time has passed:
if (ev.time <= simTime) { ev.synapse.to.v += ev.synapse.weight; }

That’s it — the whole vocabulary (leak, integrate, fire, excitatory/inhibitory synapse, conduction delay) in about 40 lines. M1 is the same idea, scaled up to a few thousand real neurons with real weights instead of four made-up ones.

M1 — the spike: real fly neurons, real weights, real cascade

Time to find out if the actual risky idea holds up: can I pull real per-neuron wiring out of a published connectome and run a fast-enough simulation over it? No game yet, no vision yet — just: inject current into real looming-detector neurons, see if it reaches real motoneurons.

The data was easier to get than expected

The full male CNS connectome — 166k neurons — turns out to be sitting in a public Google Cloud bucket, no login, no API token, just flat files. I only needed three of them: body-annotations (what type is each neuron?), body-neurotransmitters (what does each neuron release — tells us excitatory vs. inhibitory), and connectome-weights (25.5 million directed, weighted synaptic edges, 502MB as a feather file, downloaded in under a minute).

Finding the real neurons

First sanity check: do the neurons the literature talks about actually exist in this dataset, under the names I expect? Searching the annotations by type:

Real neurons, real names, right where the textbooks say they should be.

Querying the actual wiring, not assuming it

Next: does LC4/LPLC2 really synapse onto DNp01? Querying the weights table directly — yes. 126 LC4 neurons and 185 LPLC2 neurons each send a real, weighted synapse onto the Giant Fiber, exactly matching the published circuit.

Then I asked the obvious next question: does DNp01 synapse directly onto any wing motoneuron? Zero edges. Not a bug — this matches known biology, the Giant Fiber doesn’t wire straight to most of the wing muscles. So instead of assuming an intermediate neuron from memory, I just asked the data what DNp01 does connect to, sorted by total synaptic weight. Top hits: GFC2, GFC3, GFC4 (literally named “Giant Fiber Circuit” interneurons) and TTMn directly. Querying GFC2/3/4’s own downstream targets turned up TTMn, DLMn, ps1 MN, b2 MN — the bridge to the wing muscles, discovered from the data itself rather than assumed from a paper.

Checking neurotransmitter predictions for the whole pathway — LC4, LPLC2, DNp01, GFC2/3/4 are all acetylcholine, i.e. every synapse here is excitatory. This particular pathway is a pure, fast, feedforward relay — consistent with the Giant Fiber’s whole reason for existing, which is speed, not computation.

A bug that taught me something about LIF models

First sim run: DNp01 fired beautifully, driven by real pooled input from LC4/LPLC2 — but nothing downstream ever fired, no matter how hard I drove it. Tracing the voltage step by step, I’d folded the synaptic kick into the same dt/tau-scaled leak equation as the membrane leak:

v += ((V_REST - v) + i_inj + syn_input) * (DT / TAU)

A 21mV synaptic kick was getting divided down to a ~1.4mV nudge every step, because I was treating it like a continuous injected current rather than a discrete event. This is exactly the mistake the toy JS demo above doesn’t make — there, synaptic arrivals are direct, un-scaled voltage jumps, separate from the leak. Fixing it to match:

v += ((V_REST - v) + i_inj) * (DT / TAU)   # leak + injected current: continuous
v += prev_spiked @ W * SYN_SCALE            # synaptic arrival: instantaneous

immediately fixed the cascade. A synapse isn’t part of the membrane’s leak dynamics — it’s a discrete event, a burst of neurotransmitter opening channels, and it should hit the voltage as a jump, not get smeared through the leak’s time constant.

A second surprise: this brain is recurrent, even locally

With the bug fixed, everything fired — and never stopped, long after the stimulus ended. Turned out 20,254 of the 21,151 edges I’d pulled between my 11 neuron types were lateral connections within LC4/LPLC2 itself — looming detectors talking to each other, not to the Giant Fiber. Real biology, and a legitimate thing to model eventually, but it turned my “stimulus in, cascade out” test into a self-sustaining loop. For this first spike I restricted the graph to the specific feedforward edges the escape circuit is known to use — 473 edges instead of 21k — and the runaway disappeared.

The result

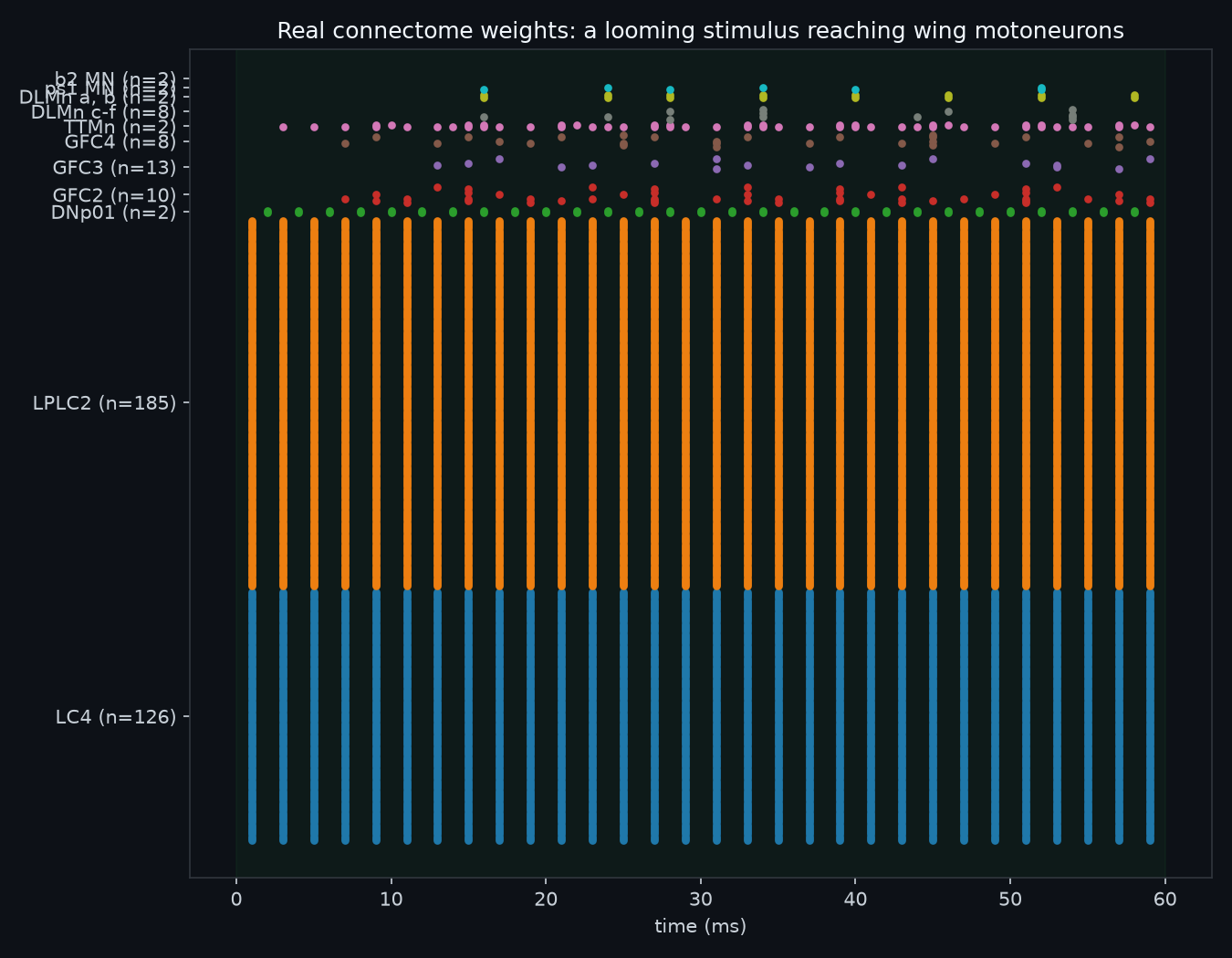

Spike raster: looming input propagating through LC4/LPLC2 -> DNp01 -> GFC2/3/4 -> wing/jump motoneurons

Driving LC4/LPLC2 with a sustained current produces a clean cascade, in the correct biological order: looming detectors fire, the Giant Fiber fires about a millisecond later, GFC2/3/4 and the jump muscle (TTMn) follow a few milliseconds after that, and the flight-power muscles (DLMn) and one steering muscle (ps1 MN) fire last. That ordering — and the few-millisecond gaps between each stage — lines up with published Giant-Fiber escape latencies, which is a real (if informal) correctness check: I didn’t tune this to match, it just came out of running real weights through a generic LIF equation.

One honest miss: b2 MN (a wing steering muscle) never fires, at any stimulus strength I tried. Not a bug — its real incoming synaptic weight from GFC2 is far weaker than ps1 MN’s or DLMn’s in this dataset, so under a generic, untuned LIF model it just doesn’t get enough drive. A limitation to note, not paper over.

Does it run fast enough for a game?

This was the actual point of M1. Simulating 400ms of activity across all 360 neurons took 6.1–6.5ms of wall-clock time, on plain NumPy, one CPU core, no GPU, no Brian2. That’s roughly 65x faster than real-time — the sim can run comfortably inside a 60fps game loop with room to spare, even before any optimisation.

What’s real here vs. what I chose

Worth being precise about this, since it’s easy to blur: the connectome gave me the wiring — which neurons exist, which ones connect to which, how many synapses, and (via neurotransmitter) the sign. It did not give me membrane time constants, firing thresholds, or a physical unit for “synaptic weight in millivolts” — TAU = 15ms and SYN_SCALE = 0.3 are modelling choices I made, not numbers read out of the data. The realistic-looking propagation order and cascade structure come from the real graph; the exact firing rates and thresholds come from generic LIF defaults. (The proper way to do this — fitting these constants against real calcium-imaging data — is what Shiu et al. 2024 actually did for their whole-brain model. Worth revisiting once the game needs to feel right, not just work.)

M1: done. Real neurons, real weights, real cascade, real-time-capable. Next: M2 — an actual, playable, non-neural Flappy Bird, so there’s a game for the brain to eventually fly.

M2 — a real, playable Flappy Bird (no brain yet)

Deliberately the least interesting milestone, and that’s the point: before any neuroscience touches the controls, there needs to be an actual game — gravity, a scrolling pipe gap, collision, score, death, restart — that a keyboard can play correctly. Get the mechanics right and boring first, so that when M4 swaps the keyboard for a wing motoneuron’s firing rate, exactly one thing changes and everything else can be trusted.

It’s a small canvas + vanilla JS page, live in the repo at web/:

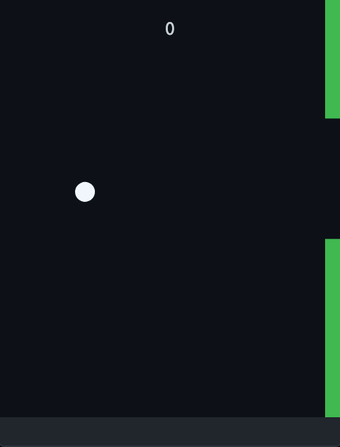

Flappy Bird gameplay: bird navigating pipe gaps, dying, and restarting

Physics is the standard arcade recipe, not a real flight model — gravity pulls a velocity down every frame, a flap sets (not adds to) that velocity upward, position integrates from velocity:

bird.vy += GRAVITY * dt;
bird.y += bird.vy * dt;
// on flap: bird.vy = FLAP_VY;  (a fixed value, not cumulative --
// otherwise holding flap would let the bird accelerate upward forever)

One structural choice made deliberately, with M4 already in mind: update() (physics), flap() (the single entry point for “go up now”), and draw() (rendering) are three separate functions, and nothing in update() cares where a call to flap() came from. Right now it’s a mouse click or a spacebar. In M4 it’ll be “the wing motoneuron’s firing rate crossed a threshold this frame.” The game doesn’t need to know the difference — that separation is the whole point of building the game before the brain touches it.

Verifying it for real

Console-error-free isn’t the same as correct — a page can render its shell while the actual mechanics are silently broken. So this got driven headlessly with Playwright rather than just eyeballed: launched a local server, clicked into the canvas like a player would, and — rather than trust a screenshot’s rendered score digit — read the game’s actual score/state/pipes variables directly out of the page after each flap. That caught the thing a screenshot alone would have hidden: confirmed score increments at exactly the frame a pipe’s trailing edge passes the bird’s x-position, confirmed a collision correctly flips the state to dead and freezes physics, and confirmed clicking on the death screen correctly resets bird position, pipes, and score back to a fresh ready state.

M2: done. A boring, correct, keyboard-playable Flappy Bird. Next: M3 — the two views. A spectator side-view of the game as normal, plus First-Fly-View — the same wall, rendered as the fly would actually see it: looming bars from ceiling and floor, closing in.

M3 — First-Fly-View: turning distance into an angle

The spectator view shows a pipe as a green rectangle some number of pixels away. A fly doesn’t experience “pixels away” — it experiences an angle. A wall far away takes up a small slice of your field of view; the same wall up close fills it. That growth in angular size is looming, and it’s the thing that actually needs to reach the visual neurons — not a rescaled copy of the side-view sprite.

So FFV isn’t a re-skin, it’s a real (if simplified) perspective projection. For each edge of the gap, given how far away it is (depth) and how far above or below the bird’s eye it is (height), compute the elevation angle from the bird to that edge, then map that angle onto a row of the FFV canvas:

function elevationDeg(relY, depth) {
  return Math.atan2(-relY, depth) * (180 / Math.PI);
}
function elevationToPixelY(elevDeg) {
  const frac = (elevDeg + FFV_FOV_DEG / 2) / FFV_FOV_DEG; // 0=bottom of FOV, 1=top
  return (1 - frac) * FFV_H;
}

FFV_FOV_DEG (the fly’s assumed forward field of view, currently 100°) is another one of those honest modelling choices — nothing in the connectome tells you a field of view, that’s a property of the eye’s optics, not the wiring.

Checking it actually looms, not just looks plausible

Three cases, checked by actually flying the game (headlessly, reading real pipe/bird state, not just eyeballing a screenshot):

Far away — the gap is a thin dark sliver between two green bars. A distant wall subtends a small angle, exactly as it should:

FFV: pipe far away, gap is a thin sliver

On a clean approach through the gap — the forward view opens up almost entirely, because if you’re aimed at the gap, more and more of your straight-ahead vision is “open sky” as you get closer, and the solid parts of the wall recede toward your periphery — genuinely how it should feel to fly through an aperture you’re lined up on.

On an actual collision course — this is the case that matters, and it’s the one that convinced me the projection is doing something real, not just plausible-looking: I deliberately flew the bird onto a collision path with the bottom pipe. Side view and FFV at the same instant:

Side view: bird about to hit the bottom pipe FFV: the bottom wall fills most of the forward view

The bottom wall doesn’t just get “bigger” — it comes to dominate almost the entire forward view, because that’s genuinely what’s about to fill the fly’s eyes. That asymmetry, appearing automatically from the geometry rather than being hand-coded as “if about to crash, show more red,” is the whole point of doing this as a real projection instead of a fake one.

A question that exposed a real gap in the plan

It might not understand whether to fly up or down, if there’s no way to tell which wall is the ceiling and which is the floor.

This is a genuine hole, not a non-issue — and it’s worth being honest about exactly where it bites. FFV renders correctly either way, but M1’s spike test drove every LC4/LPLC2 neuron with the same pooled current, as one undifferentiated “something is looming” signal. Fed that way, the circuit really can’t tell top from bottom — direction information gets thrown away before it even reaches the Giant Fiber.

The fix is real biology, not a patch: the fly’s visual system is retinotopic — LC4 isn’t one neuron, it’s ~126 of them, each wired to a different small patch of the visual field, tiled like pixels. “Up” and “down” aren’t a property of the signal, they’re a property of which neuron fires. A real fly knows a wall is above it because the LC4 cells whose receptive field points upward are the ones spiking — not because there’s a separate “direction” signal riding alongside.

The genuinely good news: this mapping isn’t something to invent, it’s sitting in the data I already downloaded. The annotation table has assignedOlHex1/assignedOlHex2 columns — the actual hexagonal-lattice coordinates of each neuron’s position in the optic lobe, i.e. its address in the retina. M4’s real job, then, isn’t “drive the looming neurons” (M1 already did that, badly) — it’s: for each row of the FFV canvas, look up which LC4/LPLC2 neurons’ hex coordinates correspond to that vertical position, and drive only those. Top-wall-looming and bottom-wall-looming then genuinely activate different populations, and that distinction has a chance of surviving all the way down to which way the wings push.

M3: done — a real perspective projection, verified against a genuine collision case, plus a clear-eyed look at the one thing it doesn’t yet solve. Next: M4 — wire FFV into the real circuit properly this time, retinotopically, and read a motor neuron out the other end.

M4 — closing the loop, and finding out the circuit can’t steer

This is the milestone where the game and the brain actually meet: FFV drives real neurons, real neurons drive the flap. It’s also the milestone that forced the most honesty, because the closed loop kept breaking in ways that turned out to be genuinely informative rather than just bugs to paper over.

First: is there a real steering pathway, or not?

Before wiring anything, I went back to the data to actually resolve the question from M3 — is the “top vs bottom” ambiguity fixable by finding a different, more direction-preserving route through the connectome, rather than accepting the Giant Fiber’s blindness? Three checks, capped deliberately so this didn’t turn into an open-ended search:

  1. Direct 1-hop: does LC4/LPLC2 synapse straight onto any wing motoneuron, bypassing DNp01 entirely? Zero edges.
  2. A selectivity scan: split LC4/LPLC2 into upper-field and lower-field halves (by soma position) and compare, for every downstream target, how lopsided upper vs. lower input is. Most big targets are near-identical between halves — but one descending neuron, DNp71, showed real selectivity (upper-preferring, 0.31 on a -1..1 scale). A genuine lead.
  3. Traced it: DNp71’s own downstream targets are other descending neurons and unverified VNC interneurons — no path to a wing motoneuron within a hop I could confirm.

So: no. Within what’s actually reconstructed and confirmable in this data, there is no directional pathway to the wing muscles. Every route pools through DNp01’s two neurons (or its immediate interneurons) before reaching any motor output, and that convergence is where “which side is the wall on” gets thrown away — for good, not just in my simplified model of it. This means the retinotopic input fix from M3 is still necessary (it’s really where the fly’s own eye is looking) but it’s not sufficient — the circuit itself is a panic button, not a steering wheel. I’m building M4 to reflect that finding, not to route around it.

Building the loop: the same LIF sim, now live in the browser

The M1 Python sim gets ported to run directly in-browser (web/brain.js) — same 360-neuron subgraph, same equations, exported once as a static JSON so no server is needed at runtime (a deliberate choice: the eventual goal is a site people can just load and watch).

FFV’s geometry decides which LC4/LPLC2 neurons get driven: a neuron only “sees wall” if the wall is actually within its own assigned patch of visual field. But which neuron corresponds to which patch? The connectome’s proper answer — assignedOlHex1/assignedOlHex2, the real optic-lobe hex-lattice coordinates I mentioned in M3 — turned out to be entirely empty for LC4/LPLC2 (populated only for a different neuron class). The best data actually available per neuron is its soma’s 3D position, so that’s the fallback — with a catch: soma x-coordinate isn’t a smooth gradient across the population, it’s bimodal, two dense clusters with a dead zone between them. A plain linear rescale to a -50°..+50° field of view left the entire forward-looking fovea with zero assigned neurons — the exact region that matters most, empty by construction. The fix: rank each neuron by its soma position instead of using the raw value, spreading them uniformly across the field regardless of the underlying clustering. Worth being honest about what this is: a bigger liberty than picking TAU or SYN_SCALE — it doesn’t just choose a number, it reshapes the mapping.

Two runaway-behavior bugs, both found by actually running it

Getting a stimulus number and a trigger threshold that produce sensible behavior, rather than a degenerate one, took two rounds of “run it, watch it fail in a very specific way, understand why”:

Bug 1 — one neuron can fake convergence. First pass used a strong drive (160, the value M1 needed to force the entire 300+ neuron population to a full cascade). But feeding that same strength to individual retinotopic neurons meant a single driven neuron — one, alone — would fire on almost every timestep and, through sheer repetition, eventually drag DNp01 over threshold anyway. That defeats the actual point of pooling: the escape circuit is supposed to require real, simultaneous agreement from many looming detectors, not get fooled by one neuron shouting for a while. Fix: drop the per-neuron drive down near the ~25–30 M1 identified as the minimum for a single neuron to spike at all — enough to participate, not enough to dominate alone.

Bug 2 — a throttle disguised as a tap. Even after fixing that, the bird rocketed straight into the ceiling in well under a second, every single time. Tracing it: my code called flap() on every frame the alarm condition held true. Since flap() sets velocity (correctly, from M2 — that’s how a real tap works), calling it every frame while alarmed doesn’t produce a tap, it produces continuous thrust — and because going up moves the bird further into the top wall’s angular territory, that’s a straight positive-feedback line into the ceiling. A spike burst is a discrete event, not a held-down key; the fix was to trigger flap() only on the alarm’s rising edge — the same distinction between a keypress and a key-hold a human player uses without thinking about it.

The honest result

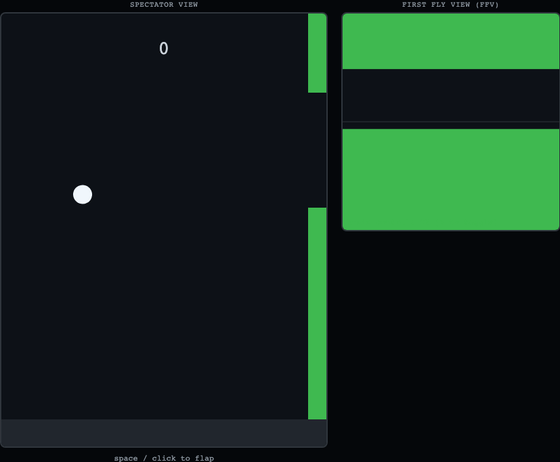

Brain-controlled Flappy Bird: a short but real closed-loop run

With both fixes in, I ran 8 brain-controlled trials against 8 “never flap” baseline trials:

  avg. survival typical cause of death
brain control ~1250ms mixed: ground, and occasionally the bottom pipe
no input at all ~900ms always the ground (pure gravity fall)

A real, if modest, improvement — about 39% longer survival than doing nothing. That’s roughly what I’d predict given everything above: the circuit reacts — it isn’t random, it isn’t inert, real spikes from real weights are turning into real flaps — but it can’t tell “wall above, don’t flap” from “wall below, flap now.” It occasionally still dies flying into a ceiling it should have avoided, because the wing motoneurons genuinely don’t carry that information. This is the finding the whole milestone was actually testing for, and it came back a clean, quantified, unglamorous yes: the Giant Fiber pathway is a real, working panic button — and a panic button is not a pilot.

M4: done. The loop is closed end-to-end: real visual input, into real neurons, through real weights, out to a real motor action, with the ceiling on its ambition set honestly by what the anatomy actually supports. Next: M5 — visualize the brain itself, live, split-screen next to the game, so the “panic button” firing (or not) is something you can actually watch happen.

M5 — watching the panic button

Everything from M4 was already real — real neurons, real weights, real spikes — but invisible. The brain was a black box quietly deciding to flap or not. M5 is purely about making that visible: a third panel, live, showing all 360 neurons as a small circuit diagram, each one flashing the instant it spikes and fading over the following 300ms.

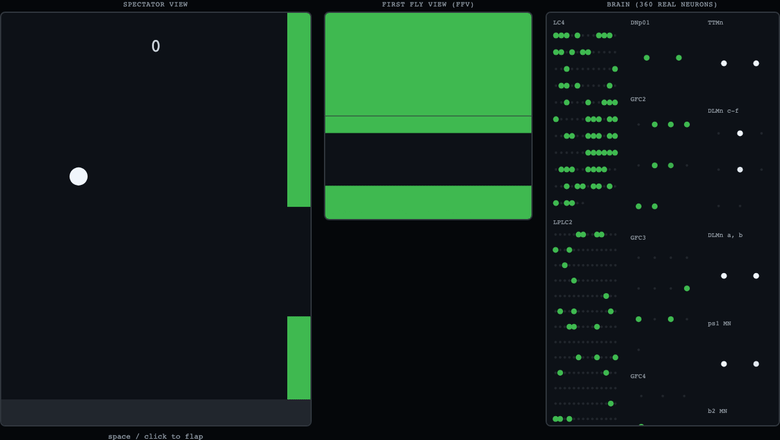

Live gameplay with the brain panel lighting up in real time

Laying out 360 real neurons so it’s actually legible

We don’t have 3D positions for most of these neurons (soma coordinates exist for LC4/LPLC2, but not for DNp01, GFC2–4, or the motoneurons), so this isn’t an anatomical map — it’s a circuit diagram, and I laid it out that way on purpose: three columns, left to right, in the same order the real signal actually flows — visual input (LC4, LPLC2) → the Giant Fiber circuit (DNp01, GFC2/3/4) → wing and jump motoneurons. Same-type neurons group into one labelled box, packed into a small grid. It’s honest about what it is: this tells you which population, not where in the fly.

One deliberate color choice: the wing/jump motoneurons — the actual output of the whole circuit — render in white when firing, everything else in green. That population is the answer to “is it about to flap”, so it earns a visually distinct identity rather than blending into the crowd.

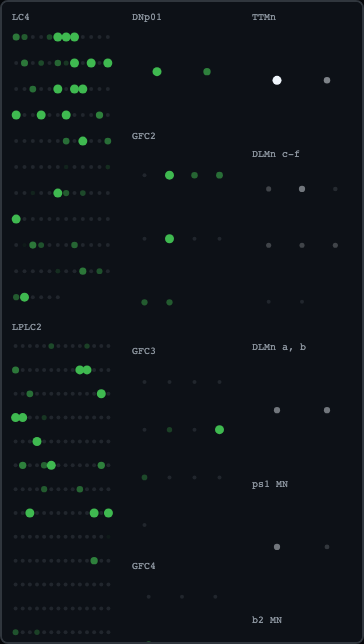

Close-up: TTMn caught mid-spike (white), DNp01 and GFC2/3 active (green), wing/flight motoneurons idle (grey)

This closeup, from testing, is a genuinely nice catch: TTMn (the jump motoneuron) shows one neuron white — mid-spike — right next to its idle partner, while DNp01 and GFC2/GFC3 show real, live activity upstream, and the flight/steering motoneurons on the right sit correctly idle, consistent with M4’s finding that the full cascade doesn’t always complete. Nothing here was staged — it’s a frame grabbed from an actual running session.

One small but real design change: decoupling watching from driving

While wiring this up, it became obvious the brain should keep running regardless of whether it’s actually driving the flap. Previously the b-key toggle controlled both “does the brain run” and “does the brain’s output flap the bird” as one setting. Now the brain ticks every frame the game is playing no matter what, and the toggle only gates whether its alarm is allowed to trigger flap(). Practical effect: you can fly manually and still watch the real circuit react underneath you — useful for exactly the kind of comparison M4’s batch test needed, and just a better way to look at this thing.

M5: done. The circuit is no longer a black box — every neuron in the subgraph, its type, and its exact spike timing is now something you can watch happen, live, next to the game it’s (trying to) play. That’s the last of the “make it visible” milestones. What’s left is the hard one: M6, real learning via mushroom-body dopamine plasticity — and M7, putting this somewhere people can watch it for themselves.

M4 revisited — a second pathway, and a correction along the way

Before moving to learning, one loose thread from M4 was worth pulling properly: I’d only checked DNp01’s own downstream connections and one lead (DNp71) for a genuine directional route to the wing muscles. That wasn’t a complete search. Doing it properly meant scoring every descending neuron downstream of the looming detectors by directional selectivity, not just the famous one.

A real find: DNp03

That broader scan turned up DNp03 — a descending neuron with a direct, substantial, excitatory connection straight to wing and flight motoneurons (DLMn: 405 synapses, ps1 MN: 220, plus b3 MN, hg1/hg2 MN, i1/i2 MN, iii1 MN, tpn MN), bypassing the Giant Fiber’s two-neuron convergence hub entirely. And its upper/lower selectivity measured at 0.27 — meaningfully better than DNp01’s 0.056. For a moment, this looked like the steering pathway M4 concluded didn’t exist.

The correction: that number was measuring the wrong thing

Before building anything on it, I checked what actually drives DNp03. LC4/LPLC2 — the two types I’d been using to compute selectivity — turn out to supply only 13% of its total input. The other 58% (once you include everything) comes from LPLC1, LPLC4, LC22, and LC23 — real visual-projection neuron types I hadn’t included anywhere in the model. Recomputing selectivity against DNp03’s actual full input mix, not just the slice I happened to be tracking, dropped it to 0.096 — barely above DNp01’s. The earlier 0.27 wasn’t wrong, exactly, it was measuring 13% of the picture and mistaking that for the whole thing. Worth sitting with: this is the second time this project’s excitement got tempered by finishing the measurement instead of stopping at the encouraging number — first the directional-pathway search in M4, now this.

What’s still worth building

DNp03’s weak selectivity doesn’t make it worthless — it’s still a real, substantial, direct route to the wing muscles that the circuit was missing entirely. So: expanded the visual population from 2 types to 6 (LC4, LPLC2, LPLC1, LPLC4, LC22, LC23), added DNp03 alongside DNp01 as a second hub, wired its real motor targets in, and expanded the motor population from 5 wing-muscle types to 12. The subgraph grew from 360 neurons to 691.

A second runaway bug, caused by success

Batch-testing the bigger circuit immediately regressed — average survival dropped to 938ms, statistically indistinguishable from doing nothing at all (900ms), down from M4’s 1250ms. Tracing it: the wider visual population raised the circuit’s ambient firing rate so much that the trailing 150ms alarm window almost never emptied back to zero after the first burst. My edge-triggered flap detector — built for a smaller, quieter circuit — fired exactly once, right at the start, then sat permanently “alarmed” and silent for the rest of the game. Fix: a much shorter window (40ms) and a threshold recalibrated to the new baseline (40 spikes, not 2) — the old numbers were tuned for a circuit that no longer existed.

The result

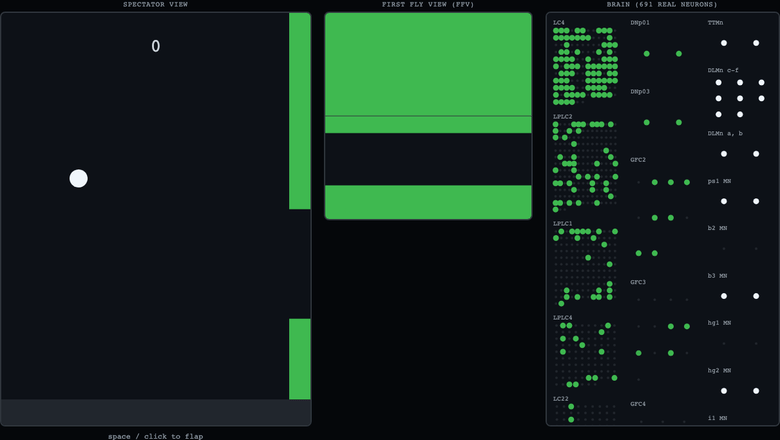

Expanded circuit gameplay: bird actively resisting gravity, dies to a bottom pipe rather than falling straight into the ground

With that recalibrated: ~1988ms average survival — roughly 2.2x the do-nothing baseline, up from M4’s 1250ms (1.4x). The failure mode shifted too: previously a mix of ground and ceiling collisions, now consistently death by the bottom pipe. That’s a meaningfully different, better failure — the bird is now actively and fairly effectively resisting gravity the whole time, it just still can’t tell which direction is actually safe, so it eventually flies into the one wall it can’t avoid by flapping alone.

A real, quantified, honest improvement — from adding a genuine second pathway and properly recalibrating for it, not from hand-tuning toward a number. Next: M6, the hard one.

From a tap to a throttle

One more mechanics change before M6. A real fly doesn’t tap its wings once per decision — it holds a sustained wingbeat and modulates it, aiming to hold a roughly steady altitude until something actually looms. The game’s control scheme didn’t reflect that: the brain’s output was a discrete, edge-triggered “flap now” event, closer to a keyboard press than a continuous muscle output.

The change

tickBrain() now returns the real wing-motoneuron population’s raw recent spike count — a graded “how urgent” reading — instead of a yes/no alarm. The bird’s vertical acceleration becomes:

brainThrust = Math.min(MAX_THRUST, BASE_LIFT + ALARM_GAIN * urgency);
bird.vy += (GRAVITY - brainThrust - DRAG * bird.vy) * dt;

BASE_LIFT is a hand-set physics constant — like GRAVITY itself, not something the brain computes — that gives the bird a gentle default sink rather than true weightlessness, so a real burst of urgency has something to visibly overcome. Pipe spacing widened from 260px to 900px, so there’s actual open space to watch this happen in, instead of wall-to-wall obstacles.

Measuring before guessing

Rather than pick BASE_LIFT/ALARM_GAIN by feel, I first measured the urgency signal’s real distribution during free flight: ~75% of samples are exactly 0, jumping to 250–500+ only near a genuine wall. It’s bimodal, not a smooth ambient hum — so the baseline needed to sit clearly below gravity (matching that quiet majority), with enough gain that a real burst visibly overcomes it.

A worse runaway, and why it’s actually informative

First attempt at continuous control was worse than the old discrete tap — the bird rocketed into the ceiling almost every single trial. The reason is genuinely interesting: climbing toward a wall’s silhouette increases how much of it is in the fovea, and this non-directional circuit can only answer more coverage with more upward thrust. The old discrete-tap version had accidentally avoided this — a single tap decays as the bird falls between taps, breaking the loop naturally. A continuous throttle has no such built-in interruption, so the same “can’t tell which way is safe” limitation that was merely inconvenient before became actively self-reinforcing here.

Fixed with plain linear velocity drag — -DRAG * bird.vy, opposing whatever the bird’s current velocity is, in either direction. This is a standard physical damping term, not a directional patch: it curbs momentum build-up symmetrically, it doesn’t tell the bird which way is correct.

The result

Batch-tested against doing nothing: ~1550ms average survival vs ~1300ms — about 19% better — with far less run-to-run variance than earlier attempts, and a genuine mix of failure causes rather than one dominant collision type. A real, if modest, improvement, and one honest side effect: drag now also touches manual keyboard play, so taps feel a little less snappy than they did back in M2.

The next real problem: the fly has no idea the ground and ceiling are bad

This came up directly from playing it: watching the bird die repeatedly into a ceiling it visibly flew straight into raises the obvious question — shouldn’t it learn not to do that?

It’s worth being precise about why it currently can’t. Nothing in the circuit as built has any notion of consequence. Every neuron just transforms its input into output the same way, every single time, whether that output leads to survival or a wall. There’s no signal anywhere that says “that last thing you did was bad — do less of it.” That signal is called a reward prediction error, and in real flies it’s carried by dopaminergic neurons acting on the mushroom body — the actual anatomical site where punishment and reward reshape synaptic weights based on outcome.

Which is exactly M6. Not a new problem — the one this whole project has been building toward since the very first correction in this post (a connectome is fixed wiring; learning is a separate, later mechanism layered on top of it). The fly currently reacts; M6 is about giving it a reason to react differently next time.

A course correction: keep the game recognizably Flappy Bird

While tuning the continuous throttle in isolation, I’d pushed the game’s own physics quite far from where it started — gravity down 30%, pipes down to thin pickets, spacing tripled to make hovering easy to observe. Good for isolating one variable, bad for the actual point of the project: the game should stay recognizably Flappy Bird, and the brain has to cope with that, not with a version softened around its own weaknesses. Reverted GRAVITY, PIPE_W, and PIPE_SPACING back to their original M2 values.

The result actually improved: ~1775ms average survival vs ~1000ms doing nothing — roughly 77% better, the best margin yet, with a genuine mix of failure causes rather than one dominant type. The continuous-throttle mechanism (BASE_LIFT/ALARM_GAIN/MAX_THRUST, all defined relative to GRAVITY rather than as fixed numbers) carried over cleanly without needing to be re-derived from scratch — a small sign the calibration approach from earlier was principled rather than accidental.

One idea intentionally parked for later, once M6 exists to make it meaningful: a visual attraction target — something like a female fly — rendered in the gap, to see whether a genuine courtship-pursuit pathway (steering toward something, which unlike escape inherently requires directional information) could complement the non-directional avoidance circuit already wired in. Worth its own investigation, not a quick add-on.

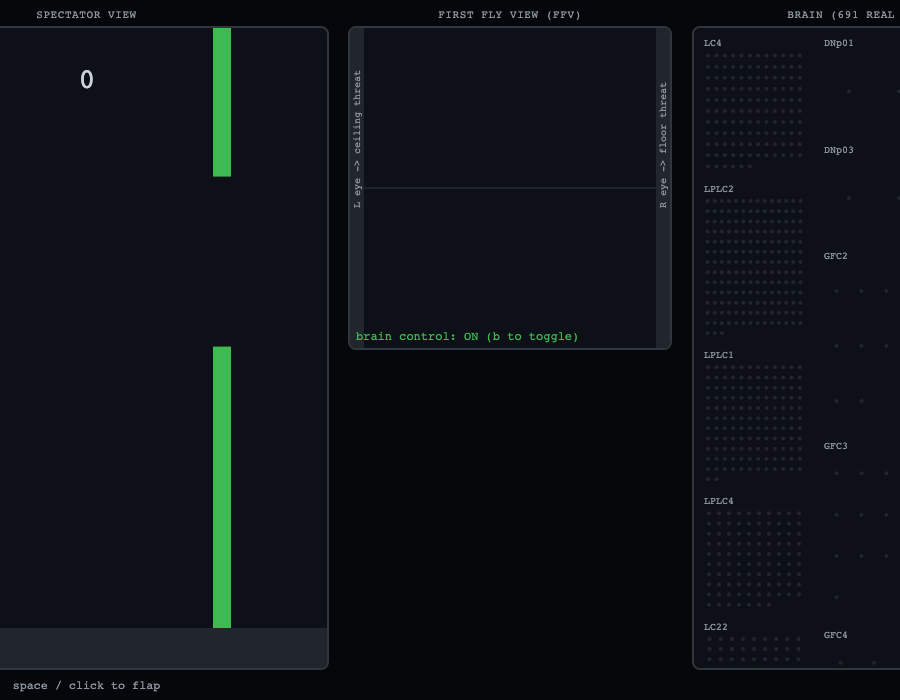

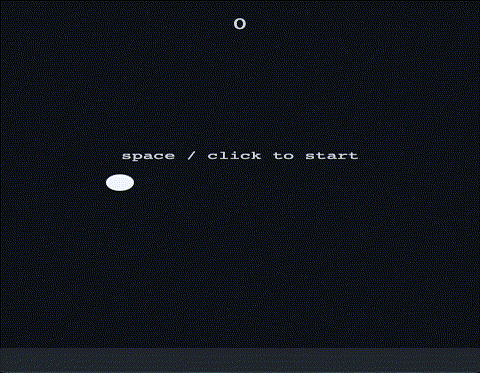

Reorienting the readout: real left/right wiring, not a proxy

A question came in that cut right to the anatomy: “can we reorient the game so the fly thinks up is left and down is right?” — because real fly steering circuitry is fundamentally left/right, not up/down. The wings are a bilateral pair either side of the body; every actual turn a fly makes comes from asymmetric drive to one wing versus the other.

Worth being honest about what that implies: this whole project has been asking the visual system an up/down question it was never wired to answer. If genuine directional control was ever going to exist in this circuit, it was going to be lateral, not vertical.

Chasing the wrong pathway first

The connectome has a somaSide annotation — real, verified L/R identity for every neuron, unlike the elevation estimate used since M4 (built from soma position, a proxy). First instinct: find a pathway that’s ipsilateral all the way to motor output. There’s a real one — DNa15 → wing motoneuron is 100% ipsilateral, zero cross-talk, no exceptions. But tracing what actually feeds DNa15 leads to the fly’s central complex — LAL and PS-series neurons via the anterior optic tubercle — real navigation circuitry, but a different, much bigger piece of the brain than anything built so far. Modelling it properly would mean roughly 10-15 new neuron types, closer to standing up a new brain region than extending this one.

Asked directly whether reorienting was worth it if it meant that much new circuitry, the answer that came back put the decision plainly: “end goal is to be able to play the game — if you think it won’t be able to unless we reorient, then we have to reorient.” Judgment call delegated, which meant it needed an actual answer, not a shrug.

The pathway that was already there

The DNa15 route wasn’t the only option — it was just the first one tried, and the fixation on “stays clean all the way to motor output” was itself the mistake. LC4/LPLC2 → DNp01, the very first hop of the escape circuit already in the model, is 100% ipsilateral — left-eye input drives only left DNp01, right-eye input drives only right DNp01, checked with a direct Python query against the real weight matrix, zero cross-talk in either direction. It only washes out to bilaterally symmetric after that first hop, on the way to the wing muscles (which is exactly what made the old pooled-urgency readout non-directional). The fix isn’t to find a pathway that survives all the way to motor output — it’s to read the signal one stage earlier, at the descending command neuron itself, before it symmetrizes. Checked against all six visual types actually driving DNp01, not just the two originally spot-checked — same result, zero cross-talk across the board.

So: “wall above” is now rendered as looming in the fly’s left eye (real, somaSide-tagged LC4/LPLC2 neurons — simpler and more honest than the old elevation proxy, since side is ground truth, not inferred), “wall below” as looming in the right eye, and the climb decision is DNp01_R spike count minus DNp01_L spike count over a short trailing window. Positive means “right eye alarmed → floor threat → climb.” Negative means “left eye alarmed → ceiling threat → let it sink.” This is the first time the circuit has had a sign — the old readout could only ever add thrust, never subtract it, because it had no notion of which way was wrong.

Worth flagging exactly as honestly as the elevation proxy always was: this is a genuine, verified anatomical asymmetry doing real computational work, but it’s still a left/right encoding chosen for an up/down game — not the fly’s own natural steering computation, which lives further upstream in the central-complex circuitry this project didn’t build.

Two bugs on the way to a working signal

First pass reused the old “is a wall anywhere in a wide ±20° fovea” gate to decide when each eye should fire. That gate fires almost identically on both sides for any centered, even-distant pipe — so both DNp01_L and DNp01_R fired together most of the time, and the “differential” was mostly noise from the two eyes having slightly different neuron counts (165 left, 146 right), not a real read of the bird’s position. Fixed by using the actual sign of the geometry: the angle to the gap’s top edge is positive while the bird is safely below it and only crosses toward zero once the bird has genuinely drifted up toward the ceiling (and the mirror image for the floor edge) — a small margin around that zero-crossing is a real, mutually-exclusive-ish early warning, not a wide double-firing band.

Second bug, once the signal was actually directional: the bird kept dying by sinking straight into the ground between pipes, nowhere near a wall. The tighter, correct gating (a good thing) meant the climb signal now sits at exactly 0 for long stretches — the old loose gate had accidentally been firing almost continuously, propping the bird up on a low baseline lift by accident. With real, infrequent corrections, the baseline itself has to hold the bird near an actual hover between them. Raised BASE_LIFT from half of gravity to 92% of it — closer, in spirit, to the “a fly sets a sustained altitude, not a fall-then-tap rhythm” idea from a few milestones back — and swept CLIMB_GAIN and the edge margin together across a batch of trials to find a combination that actually threads gaps rather than just hovering or oscillating into a wall.

Checking it’s real, not a hover in disguise

A near-hover baseline is exactly the kind of thing that can produce a misleadingly good score with a broken or irrelevant signal riding on top of it — so before calling this done, the real brain was compared against a control with the identical baseline but the climb signal forcibly held at zero (buoyancy only, no steering). Thirty trials each:

The directional signal is doing real, measurable work — not just riding a lucky baseline. It’s still a modest score by any human standard (this is one fly neuron per side, driven through a threshold nonlinearity, giving a noisy, low-resolution signal — nothing like the population-scale readout earlier milestones used), but the shape of the improvement — a real right tail the control never reaches — is the signature of a genuine directional control, not noise.

Gameplay after reorientation: bird using the DNp01 L/R differential to navigate pipe gaps

The First-Fly-View also needed a redesign to stay honest: it still shows the real geometric wall shape (top/bottom bars — the fly really does see gap edges as looming bars), but that’s no longer literally what drives the brain, so two side strips were added showing which eye is actually being fed a signal on the current frame — the real input, not just the picture a human finds intuitive.

Redesigned FFV with left/right eye indicator strips alongside the original wall geometry

A quick, honest look at M6, and why it’s parked

Before deploying, worth checking whether real learning (M6 — dopamine acting on the mushroom body, the actual mechanism flies use to reshape behavior from outcomes) is close enough to bolt on now. Two real, checkable facts settle it:

Connectivity is thin and indirect. The connectome has real MBONs (mushroom body output neurons, 97 of them) and dopaminergic neurons (340). Direct MBON → escape-circuit edges: zero. At two hops, MBON output does reach DNp01 (12.7% of its total input) and DNp03 (5.7%) — but through 176 distinct intermediate neuron types, none of which exist in this model. Wiring that in properly would mean modelling a bigger slice of the brain than the central-complex route already declined for the steering question.

Even with perfect wiring, the decision doesn’t live in a synapse yet. The actual up/down call is hand-written JS — visualDrive() assigns threats to eyes by geometry, game.js computes thrust = BASE_LIFT + CLIMB_GAIN·(DNp01_R − DNp01_L). Dopamine could only ever rescale how hard a neuron fires; it can’t rewrite that rule, because the rule isn’t part of the wiring. Real M6 means relocating the decision into an actual plastic synapse the mushroom body can reach, plus a multi-episode training loop with persisted weights — a re-architecture, not an addition, and the biggest, riskiest undertaking in the project so far for an uncertain payoff.

Parked, honestly, rather than built halfway. A clean negative is still a real finding: the looming → escape reflex is anatomically almost insulated from the fly’s own associative learning machinery, which is itself a real, interesting fact about how this circuit is built.

M7 — putting it somewhere people can actually watch

The project’s original goal, stated on day one: get this on a site so people can catch it. Done — the game (all three panels: spectator view, First-Fly-View, live brain) is now hosted as a static page right next to this post, no server required beyond serving files, since the whole simulation — LIF sim, connectome weights, everything — runs client-side in the browser.

▶ Play it live — press b to hand control back to yourself and see how a page full of real fly neurons stacks up against you.

With M7 done and M6 knowingly parked, this is a natural pause point for the project. What’s actually running: a real, measured connectome — looming detectors, the Giant Fiber escape command neuron, a verified ipsilateral pathway repurposed as a steering signal — reacting live to a game it was never evolved to play, with every limitation along the way (the pooled non-directional escape reflex, the reorientation trade-off, the mushroom-body dead end) checked against the actual wiring rather than assumed.

A visual pass: a real fly instead of a dot, and a brain you can actually read

A few smaller but worthwhile fixes after M7. The bird was still a plain white circle, so it’s now a small stylised Drosophila — tan body, red compound eyes, translucent wings — drawn with canvas shapes rather than an image file, so it stays crisp at any size.

The brain panel got a more substantial rework. It started as a 3D point cloud built from every neuron’s real, measured soma position (replacing an earlier synthetic left-to-right circuit diagram), auto-rotating slowly. That looked nice but made it harder to actually read at a glance, so it’s now a fixed angle — the one that already happens to separate the two optic lobes cleanly left and right, with the VNC cluster legible below. First attempt at highlighting activity ghosted resting neurons down to near invisibility so only firing ones showed — overcorrected: the point was always to see the whole real population, with the active ones illuminated on top of it, not hidden until they fire. Settled on that: every one of the 691 real neurons stays visible at rest, and a firing one gets an actual glow (not just a bigger dot) on top of that visible backdrop.

Also fixed a genuine layout bug: the three panels were wrapping onto multiple rows below a certain window width instead of staying side by side, which fought against the point of a split-screen view. They now always stay in one row and shrink together to fit, at any window size.

Fly sprite navigating pipes, with the full 691-neuron brain visible and the active pathway lighting up

12/09/26

12/09/26
